Completing the wing

The wing has no dihedral so attaching the two panels was relatively straight forward. I cut a dihedral brace from 1/16" light plywood and fit it into a slot cut into the main spars. The slot runs through the first bay and the brace then fits between the spars in the second bay:


The completed wing with both panels glued into one:

Wing attachment to the fuselage uses a setup that has a "hook" in the front and two nylon screws in the back. The hook is make of 1/16" light ply with 1/8" balsa filler in between, and is glued to the dihedral brace. I also added a thin ply strip to the top of F2 that centers the hook and prevents it from sliding sideways:

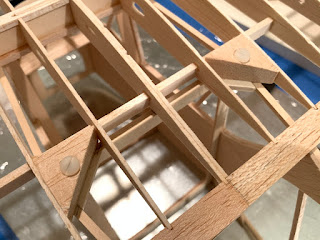

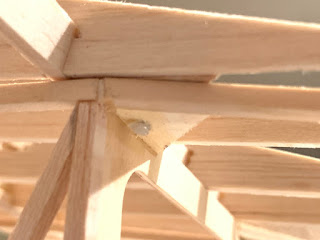

The wing is braced to the top of F3 by two #6-32 nylon screws. The crews go directly into the 1/8" triangle gussets without any blind nuts. There was no space for the blind nuts and the hole in the gusset is threaded and reinforced with CA to preserve the threads:
